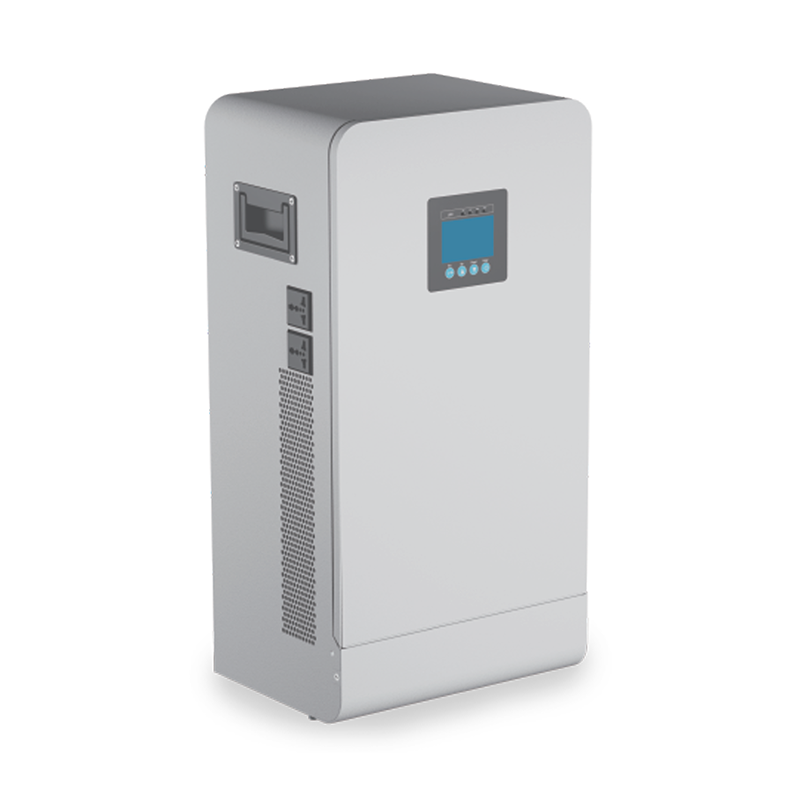

5kWh 3.6kW Mobile All-in-One Solar System AYG5-3.6KW
Home Energy Storage System Mobile Battery + Inverter Cabinet
25.6V 200Ah
3.6KW Pure Sine Wave
5000W Solar Input
6000+ Cycles (80% DOD)
Product Introduction
True All-in-One Integration
A completely integrated system combining a high-density 5.12kWh LiFePO4 battery pack, a 3.6kW pure sine wave hybrid inverter, and an advanced MPPT controller in a single rollable cabinet.
Plug & Play Mobile Setup
No complex wall installation required. Equipped with heavy-duty omnidirectional wheels for effortless movement, making it highly portable for garages, home backup, and garden sheds.
High-Power Solar Charging
Equipped with a built-in 5000W MPPT solar charge controller. Charge via solar panels (recommended solar power >1000W) or AC grid power for total off-grid security.
Technical Features
Industrial-Grade Protection
Designed with high-quality battery safety features: over/under voltage protection, short circuit protection, and intelligent temperature control inside the robust steel cabinet.
Clean Pure Sine Wave Output
The built-in inverter delivers stable 220V/230V pure sine wave output (110V customizable), ensuring safe, hum-free operation of sensitive household appliances and electronics.
Product Overview
Technical Specifications
| Parameter | Specification (AYG5-3.6KW) |
|---|---|
| Model | AYG5-3.6KW (old version AYG5-3KW) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Battery Rated Energy | 5120WH |
| Rated Inverter Power | 3.6KW |
| AC Output Voltage | 220V/230VAC±5% (110V Customizable) |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 5000W (Vmp:60-430V, Voc:450V, MPPT: 15A) |
| Cycle Life | 6000 Cycles @ 80% DOD |
| Communication | RS232, RS485, CAN |
| Operating Temperature | -20°C to +60°C |
| Product Dimension | 620 * 320 * 240 mm |
| Package Dimension | 755 * 380 * 335 mm |
| Weight (Net / Gross) | 52.5kg / 57.8kg |
Frequently Asked Questions
We recommend solar panel power >1000W (e.g. daily average sunshine time >6hrs) to optimize the system charging efficiency and sustain household power backup.
This specific mobile all-in-one system does not support external battery parallel expansion. For modular scalability, we suggest our stackable or tower battery product lines.
