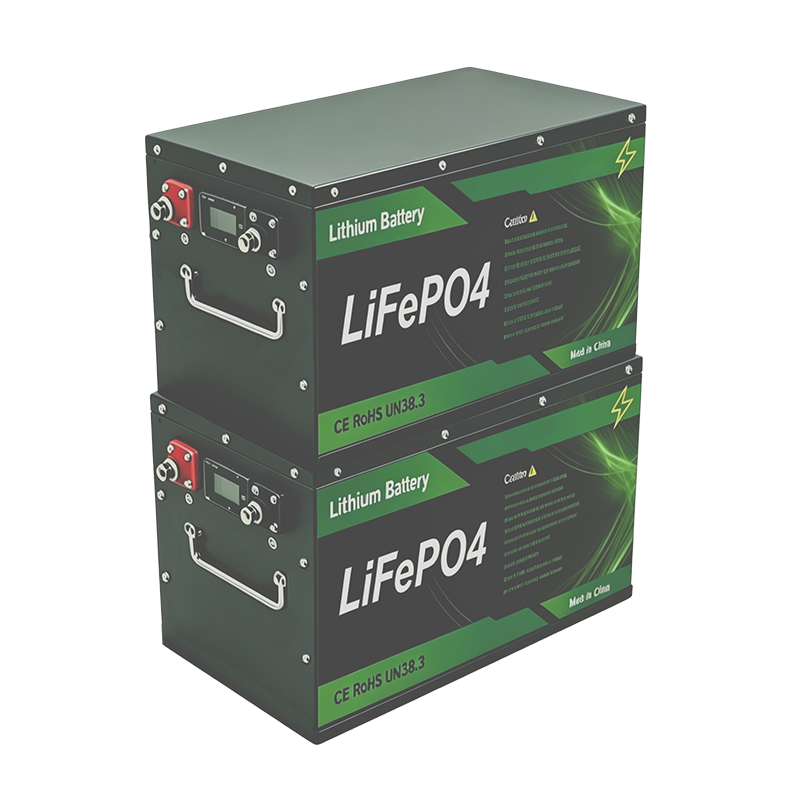

    12.8V Stackable Modular LiFePO4 Battery Pack

    Home Energy Storage Stackable Lithium Battery Pack

    12.8V Series 100Ah - 314Ah Built-in LCD & Bluetooth 6000+ Cycles (80% DOD)

    Product Introduction

    🧱

    Modular Stacking Design

    Supports flexible series and parallel stacking connections (up to 4S4P). Ideal for replacing lead-acid batteries with high scalability for RVs, yachts, and off-grid solar systems.

    📊

    Built-in LCD Screen

    Features an integrated digital LCD display, allowing real-time monitoring of voltage, remaining capacity, status, and system parameters directly on the module.

    📱

    Smart Bluetooth Interconnection

    Built-in Bluetooth module for easy connection to smartphone App, offering convenient remote monitoring of SOC, voltage, and battery health.

    Technical Features

    🛡️

    High-Safety LiFePO4

    Engineered with stable lithium iron phosphate chemistry and advanced BMS to protect against overcharge, overdischarge, short circuits, and extreme temperatures.

    ⚖️

    Flexible Scalability

    Standard support for up to 2S2P configurations, with 4S4P optional, allowing effortless voltage expansion from 12V to 48V based on customized power needs.

    Product Overview

    12.8V Stackable Battery Overview

    Technical Specifications

    Parameter 12.8V 100AH 12.8V 150AH 12.8V 200AH 12.8V 314AH
    Nominal Voltage12.8V12.8V12.8V12.8V
    Capacity100Ah150Ah200Ah314Ah
    Rated Energy1.28KWh1.92KWh2.56KWh4.02KWh
    Charging Voltage14.6V14.6V14.6V14.6V
    Discharge Cut-off10V10V10V10V
    Continuous Charge100A100A150A150A
    Continuous Discharge100A150A200A200A
    Cycle Life6000 Cycles @ 80% DOD
    Dimension (mm)352*200*170470*200*170462*220*190500*220*270
    Weight (kg)11.5/12.517.5/18.520.5/21.531.5/32.5

    Frequently Asked Questions

    Yes, the standard version supports up to 2 series and 2 parallel configurations for 12V and 24V applications. A 4S4P configuration for 48V setups is also optionally available.
    Yes, this battery comes with built-in Bluetooth and LCD screen, enabling you to check voltage, SOC, and cycle info via the dedicated smartphone App or the on-unit display screen.
