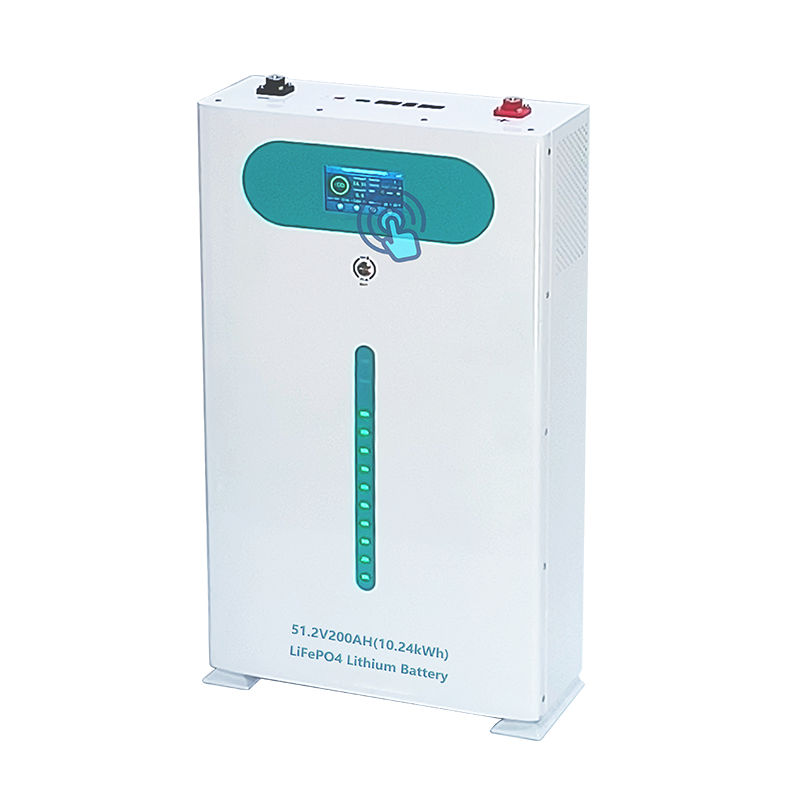

51.2V 200Ah Touchscreen Wall Battery 51.2V200AH-LS
Premium Wall-Mounted LiFePO4 Battery with Intelligent Touchscreen
51.2V 200Ah
10.24kWh Capacity
Built-in Touchscreen
150A Continuous Current
Product Introduction
High Capacity, Low Profile
Features 10.24kWh of backup capacity in an ultra-slim, wall-mounted steel chassis. Perfectly fits into garages, basements, or utility rooms to maximize storage space.
Smart LCD Touchscreen
Comes with a front-mounted interactive LCD touchscreen to display SOC, cell voltages, temperature, and operating status, providing status transparency without a mobile App.
Intelligent Interconnection
Integrated with high-speed Bluetooth & WiFi. Remotely monitor, log data, and control battery parameters anywhere in real-time through the dedicated mobile App.
Technical Features
Advanced BMS Protection
Automated safety management shields the battery pack against overvoltage, low voltage, overload, short-circuit, and high-temperature conditions.
Seamless Integration
Fully compatible with major hybrid inverters via standard RS232, RS485, and CAN communication protocols. Supports parallel expansion of up to 15 modules.
Product Overview
Technical Specifications
| Parameter | Specification (51.2V200AH-LS) |
|---|---|
| Model | 51.2V200AH-LS |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Rated Energy | 10240WH |
| Continuous Charge Current | 0-150A |
| Continuous Discharge Current | 0-150A |
| Charge Termination Voltage | 58.4V |
| Discharge Termination Voltage | 44.8V-46.5V |
| Cycle Life | 6000 Cycles @ 80% DOD |
| Communication | RS232, RS485, CAN |
| Product Dimension | 720 * 420 * 160 mm |
| Package Dimension | 795 * 500 * 240 mm |
| Weight (Net / Gross) | 76kg / 90kg |
Frequently Asked Questions
We recommend a solar panel array exceeding 2000W (e.g., daily average sunshine time >6hrs) to ensure efficient solar charging and maintain energy security.
Yes, this touchscreen model features built-in Bluetooth & WiFi. You can view all real-time parameters directly on the touchscreen as well as on our mobile App.
