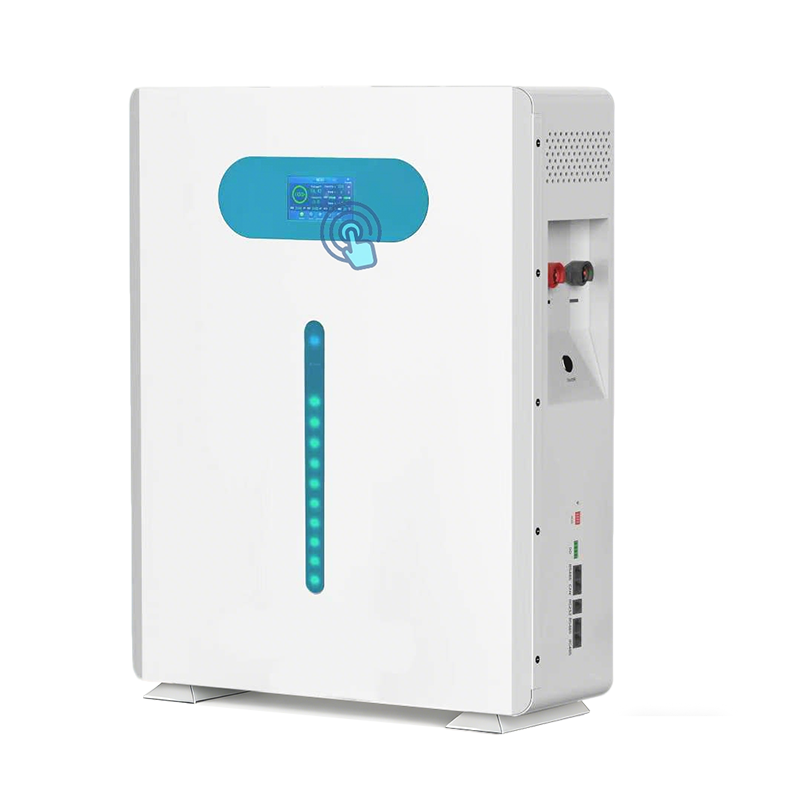

    51.2V 100Ah Touchscreen Wall Battery 51.2V100AH

    Premium Wall-Mounted LiFePO4 Battery with Intelligent Touchscreen

    51.2V 100Ah 5.12kWh Capacity Built-in Touchscreen 120A Continuous Current

    Product Introduction

    🧱

    Slim & Compact Form Factor

    Integrates a 5.12kWh LiFePO4 battery pack into an ultra-slim, space-saving wall-mounted steel chassis. Perfectly suited for utility closets, garages, and basements.

    🖥️

    Smart LCD Touchscreen

    Comes with a front-mounted interactive LCD touchscreen to display SOC, cell voltages, temperature, and operating status, providing status transparency without a mobile App.

    📡

    Intelligent Interconnection

    Integrated with high-speed Bluetooth & WiFi. Remotely monitor, log data, and control battery parameters anywhere in real-time through the dedicated mobile App.

    Technical Features

    🛡️

    Advanced BMS Protection

    Automated safety management shields the battery pack against overvoltage, low voltage, overload, short-circuit, and high-temperature conditions.

    🔄

    Seamless Integration

    Fully compatible with major hybrid inverters via standard RS232, RS485, and CAN communication protocols. Supports parallel expansion of up to 15 modules.

    Product Overview

    51.2V 100AH Overview

    Technical Specifications

    Parameter Specification (51.2V100AH-LS)
    Model51.2V100AH-LS
    Nominal Voltage51.2V
    Nominal Capacity100Ah
    Rated Energy5120WH
    Continuous Charge Current0-120A
    Continuous Discharge Current0-120A
    Charge Termination Voltage58.4V
    Discharge Termination Voltage44.8V-46.5V
    Cycle Life6000 Cycles @ 80% DOD
    CommunicationRS232, RS485, CAN
    Product Dimension610 * 490 * 160 mm
    Package Dimension690 * 575 * 250 mm
    Weight (Net / Gross)52kg / 63kg

    Frequently Asked Questions

    We recommend a solar panel array exceeding 1000W (e.g., daily average sunshine time >6hrs) to ensure efficient solar charging and maintain energy security.
    Yes, this touchscreen model features built-in Bluetooth & WiFi. You can view all real-time parameters directly on the touchscreen as well as on our mobile App.
