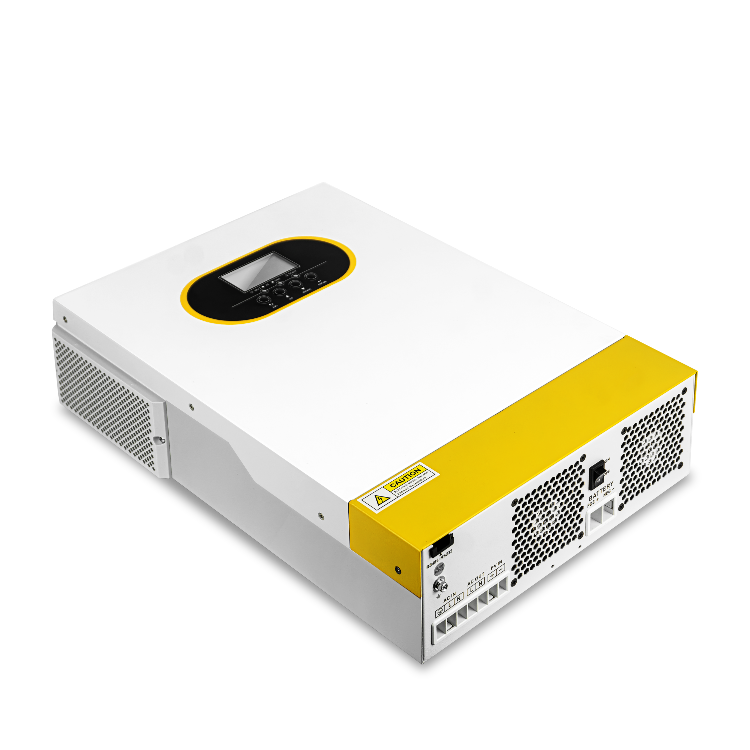

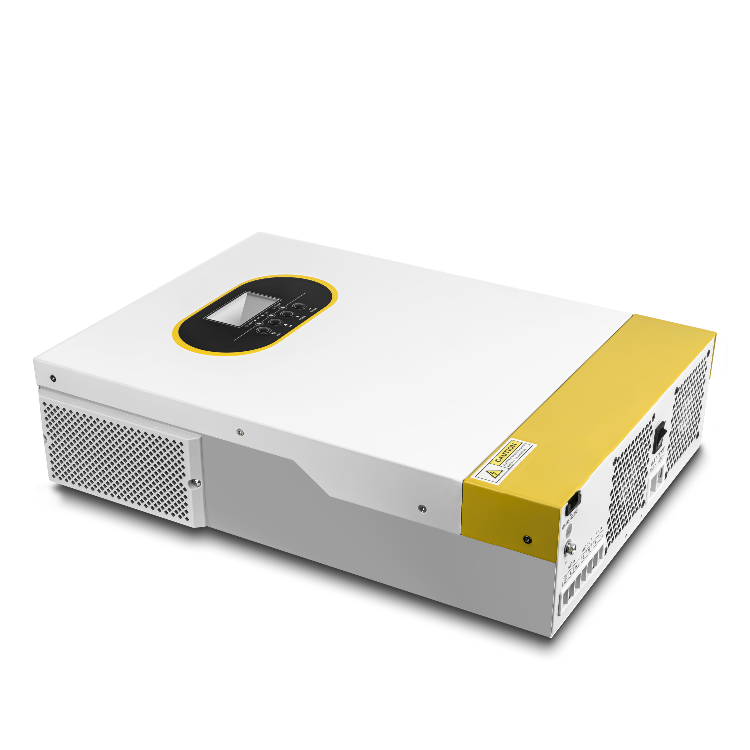

YG48-6.2KW Wall mounted inverter
Wall Mounted Inverter System
6200W Rated power
120A Maximum charging
6500W Photovoltaic
Compact design
Product Introduction
High-efficiency output
With a rated power output of 6200W and employing pure sine wave technology, it provides a stable and reliable power supply for home and small business applications, ensuring the safe operation of all equipment.
Smart photovoltaic charging
It supports up to 6500W photovoltaic input, a wide voltage range of 60-450V, and is equipped with an MPPT charging controller to maximize the use of solar energy and improve system efficiency.
Hybrid charging mode
The system combines mains power and photovoltaic charging, with a maximum charging current of up to 120A, to quickly charge the battery pack, ensuring a continuous and stable power supply to meet various electricity needs.
Technical Features

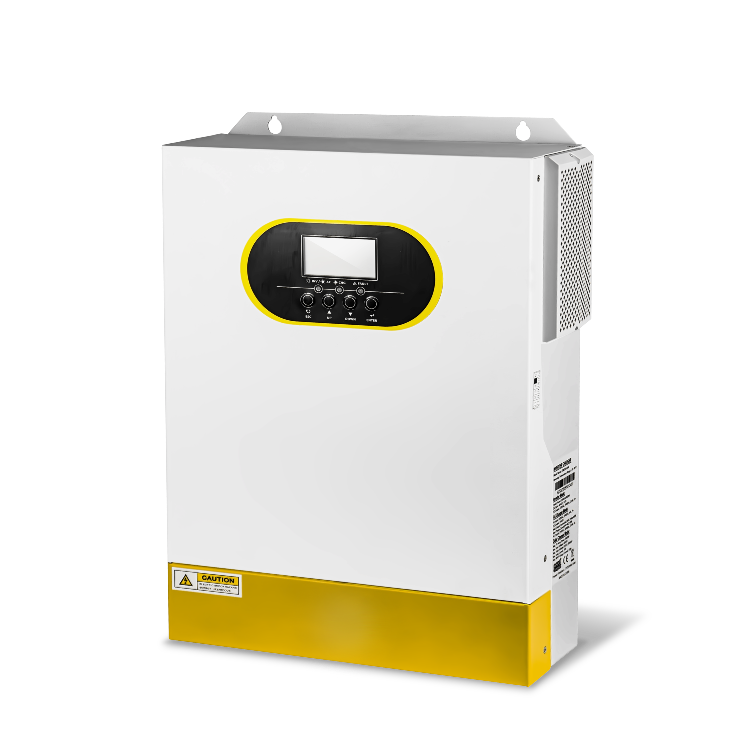

Wall-mounted design
With its compact wall-mounted design, measuring 438×295×105mm and weighing only 8.7kg, this space-saving and easy-to-install appliance is suitable for homes and small commercial spaces.
Comprehensive Protection System
Integrates multiple protection functions including overvoltage, undervoltage, overcurrent, short circuit, and overtemperature protection to ensure safe operation of the system and equipment and extend their service life.
Intelligent Switching
Automatic and seamless switching between AC power and battery power, supporting AC power priority or battery priority modes, flexibly adapting to different power supply scenarios and ensuring uninterrupted power supply.
Adjustable charging current
The maximum AC charging current is 80A, with a default of 30A. Users can adjust the charging speed according to their actual needs to balance charging efficiency and battery life.
Wide Temperature Range
Adaptable to various environmental temperature conditions, equipped with an intelligent temperature control system to ensure stable operation under various climatic conditions and improve system reliability.
Silent Operation
Utilizing advanced heat dissipation design and low-noise technology, it operates with extremely low noise, ensuring it will not disrupt daily life or the work environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YG48-6.2KW |
| Rated Power | 6200W |
| DC Input | 48VDC, 135A |
| AC Input | 230VAC 50/60Hz, 40A |
| AC Output | 230VAC 50/60Hz, 27A |
| Output Waveform | Pure Sine Wave |
| AC Charging Current | Max 80A, Default 30A |
| Max Charging Current (Mains + PV) | 120A |
| PV Max Power | 6500W |
| PV Input Voltage | 60-450V |
| PV Max Charging Current | 120A |
| Efficiency | ≥90% |
| Net Weight | 8.7kg |
| Gross Weight | 9.55kg |
| Product Dimensions (D×W×H) | 438×295×105mm |
| Package Dimensions (D×W×H) | 560×375×185mm |
Application Scenarios
Home Energy Storage System
Suitable for home photovoltaic energy storage systems, combining solar panels and battery packs to achieve self-sufficient clean energy supply, reduce electricity bills, and improve energy independence.
Small Commercial Spaces
Ideal backup power systems for commercial spaces such as convenience stores and small offices, ensuring continuous operation of critical equipment and preventing losses caused by power outages.
RVs and Mobile Applications
The compact and lightweight design is ideal for mobile applications such as RVs and yachts, providing a stable AC power output to meet the various power needs of mobile living.
Off-grid system
Perfectly suited for off-grid scenarios such as mountain cabins and remote areas, providing a reliable independent power supply when used with solar panels and battery packs.
Emergency Backup Power
As an emergency backup power source for homes or offices, it automatically switches to power in the event of a mains power failure, ensuring continuous power supply to critical loads such as refrigerators, lighting, and communication equipment.
Agricultural Facilities
Suitable for agricultural facilities such as greenhouses and farms, providing stable power in conjunction with solar energy systems to support the operation of agricultural equipment such as irrigation systems and ventilation equipment.
Installation & Integration
Easy Installation
Wall-mounted design, equipped with standard mounting brackets and a detailed installation guide, allows ordinary users to easily complete the installation without professional tools or skills.
Flexible Wiring

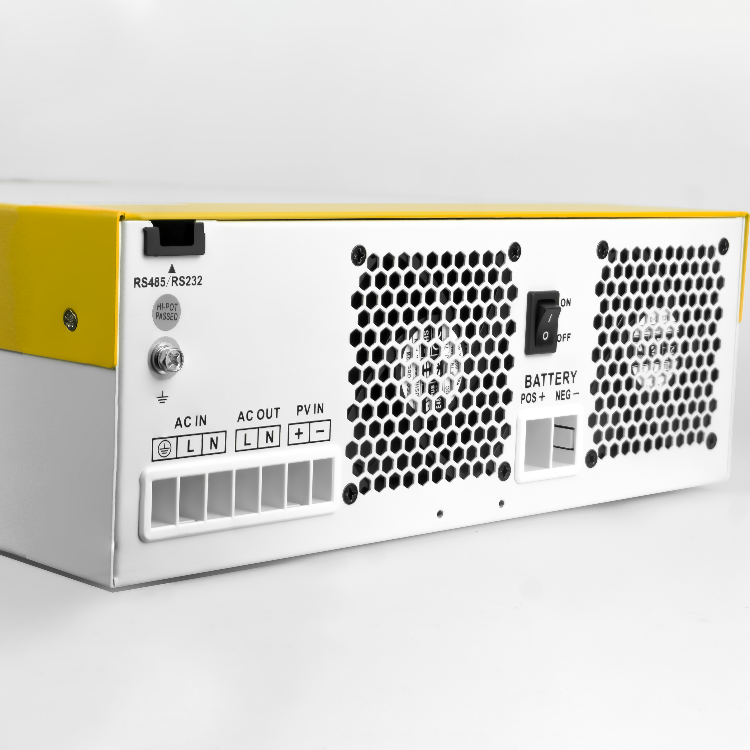

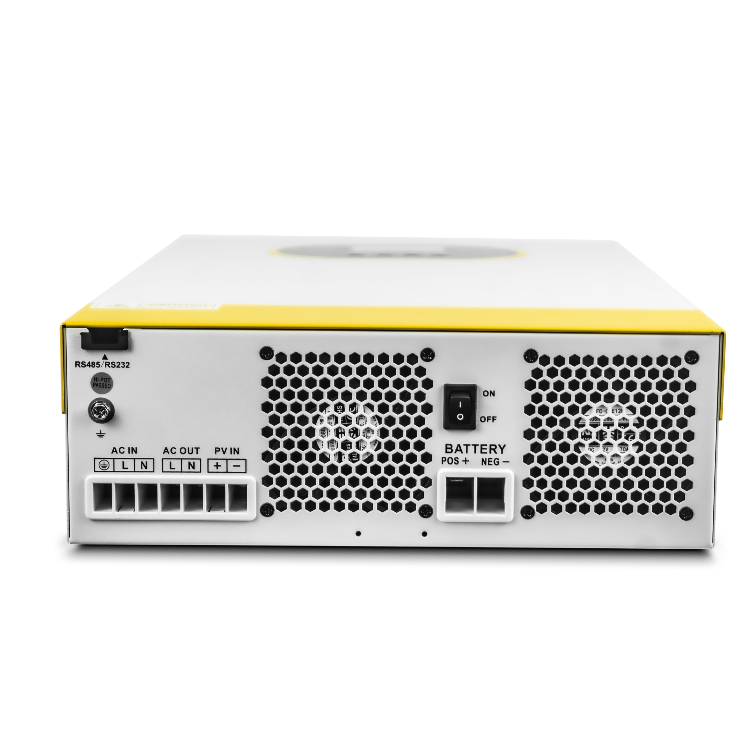

Clearly labeled terminal blocks support multiple connection methods including DC input, AC input/output, and photovoltaic input, facilitating system integration and expansion.
System Compatibility
Compatible with mainstream 48V battery systems on the market, including lead-acid and lithium batteries, allowing for flexible selection of battery configurations based on needs.
Intelligent Monitoring
Optional remote monitoring module allows real-time viewing of system operating status, power generation, power consumption, and other data via a mobile app, facilitating remote management.

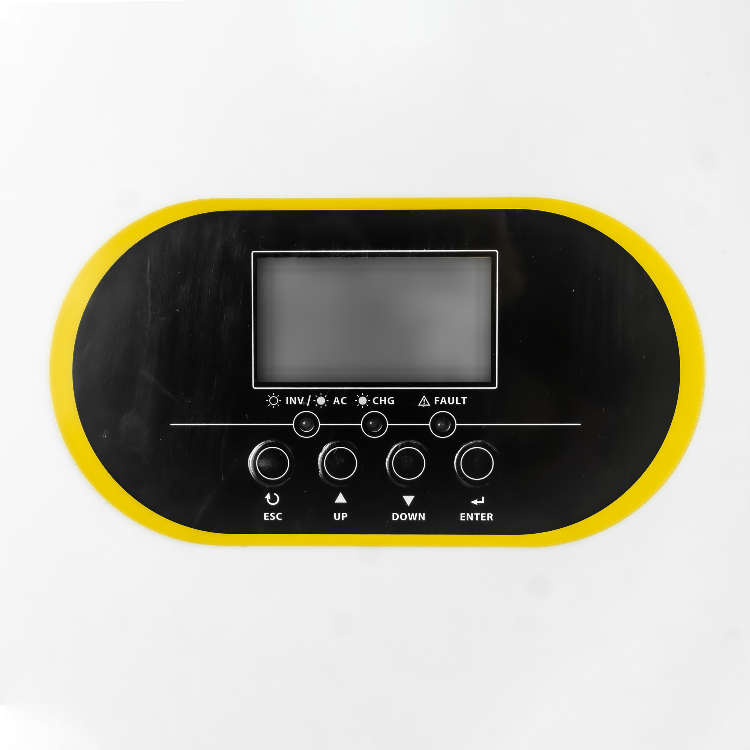

Parameter Settings
Supports adjustment of parameters such as charging current and operating mode. Users can optimize system performance according to actual needs to achieve the best operating results.
Parallel Expansion
Supports parallel operation of multiple devices, allowing for flexible expansion of system capacity based on load requirements to meet higher power demands.
Frequently Asked Questions
Yes. This inverter supports simultaneous charging from both mains and solar power, with a maximum charging current of 100A. The system intelligently allocates charging power, prioritizing solar energy and supplementing the remaining amount with mains power to achieve optimal charging efficiency.
This inverter has a conversion efficiency of ≥90%, employs advanced power conversion technology and high-quality components, minimizes energy loss, and ensures efficient and stable power output.
Although the product is designed for ease of installation, it involves AC power connection and battery wiring, so it is recommended that the installation be performed by a qualified electrician to ensure safety and compliance with local electrical codes.
When the mains power fails, the inverter will automatically switch to battery power mode within 20ms. The switching speed is fast and will not affect the normal operation of most electrical appliances, ensuring the continuity of power supply.
The product comes with a 2-year warranty. During the warranty period, if a malfunction occurs due to product quality issues, we will provide free repair or replacement services. Lifetime technical support and spare parts supply are also provided.
