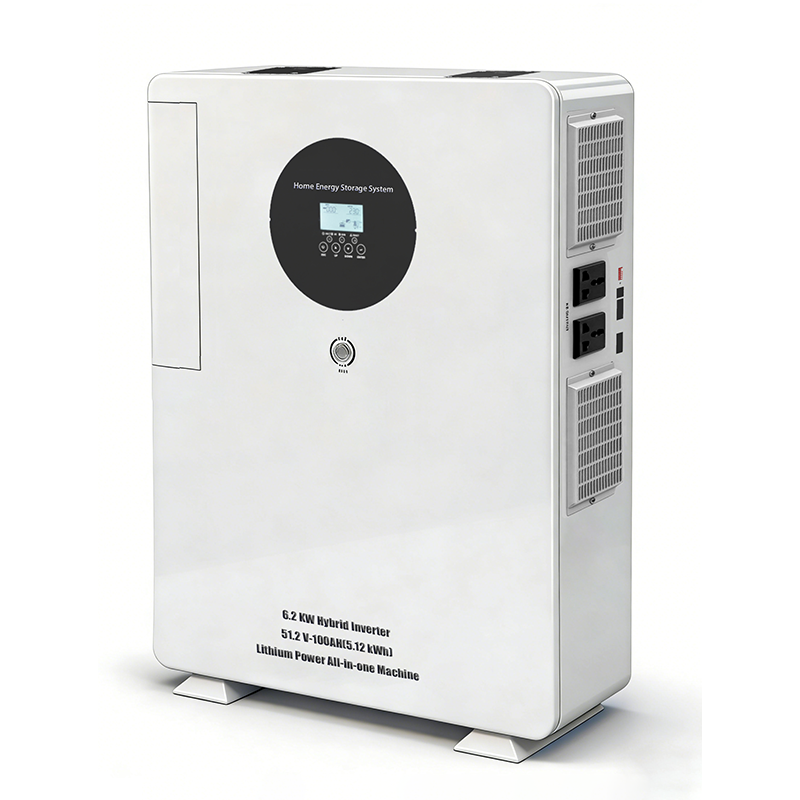

    5kWh Wall Mounted All-in-One System

    Compact Complete Energy Solution

    5120WH Battery 6.2KW Inverter Compact Design 9 Unit Parallel

    Product Introduction

    🏠

    Compact All-in-One

    Perfectly sized for residential applications combining 5.12kWh battery storage with 6.2kW inverter in a compact wall-mounted design ideal for typical home energy needs.

    ⚡

    High-Power Performance

    6.2kW pure sine wave inverter with 6500W solar/AC input delivers professional-grade power quality for demanding residential applications and sensitive electronics.

    🔧

    Easy Installation

    Integrated design simplifies installation with all components built-in, reducing installation time and complexity while maintaining professional performance.

    Technical Features

    🔋

    Optimized Battery System

    51.2V/100Ah LiFePO4 battery system with 6000-cycle life rating, providing reliable energy storage with excellent depth of discharge performance.

    ☀️

    Advanced Solar Integration

    Built-in 120A MPPT controller optimizes solar energy harvesting with support for 1000W+ solar panel arrays and intelligent charging algorithms.

    🛡️

    Comprehensive Safety

    Multi-layer protection system with overvoltage, undervoltage, overload, short circuit, and thermal protection ensuring safe operation in all conditions.

    Technical Specifications

    Parameter Specification
    ModelYG5-6.2KW
    Battery Voltage51.2V
    Battery Capacity100Ah
    Battery Energy5120WH
    Battery Cycle Life6000 cycles (80% DOD)
    Inverter Rated Power6.2KW
    Input Frequency50Hz/60Hz
    Solar/AC Input6500W (120-450V)
    MPPT Controller120A
    Output Voltage220V/230VAC±5% (110V customizable)
    Output WaveformPure Sine Wave
    CommunicationRS232, RS485, CAN
    Parallel SupportUp to 9 units
    Dimensions670×520×150mm
    Package Dimensions800×625×255mm
    Weight62.5kg
    Package Weight74kg

    Application Scenarios

    🏠

    Residential Homes

    Perfect for typical residential applications providing backup power, solar energy storage, and load shifting for average household energy consumption.

    🏢

    Small Offices

    Ideal for home offices, small businesses, and professional services requiring reliable backup power and energy cost reduction.

    🏘️

    Apartment Buildings

    Suitable for apartment units, condominiums, and multi-family residences with moderate energy storage requirements.

    Installation & Integration

    🔧

    Simplified Installation

    Compact all-in-one design reduces installation complexity with integrated components and standardized electrical connections.

    ☀️

    Solar Optimization

    Designed for 1000W+ solar panel systems with integrated MPPT controller ensuring maximum solar energy harvesting efficiency.

    🔗

    Scalable Design

    Up to 9 units can be paralleled for expansion from 5kWh to 46kWh capacity and 55.8kW power as energy needs grow.

    Frequently Asked Questions

    We recommend 1000W or more of solar panel capacity to efficiently charge this system and maximize your solar energy independence and cost savings.
    With 5.12kWh capacity, this system can power an average home for 4-8 hours during outages or provide extended runtime for essential loads like refrigeration and lighting.
    Yes, up to 9 units can be connected in parallel, allowing you to start with one unit and expand to meet growing energy needs up to 46kWh total capacity.
    While the integrated design simplifies installation, professional installation by a qualified electrician is recommended to ensure safety and optimal performance.
