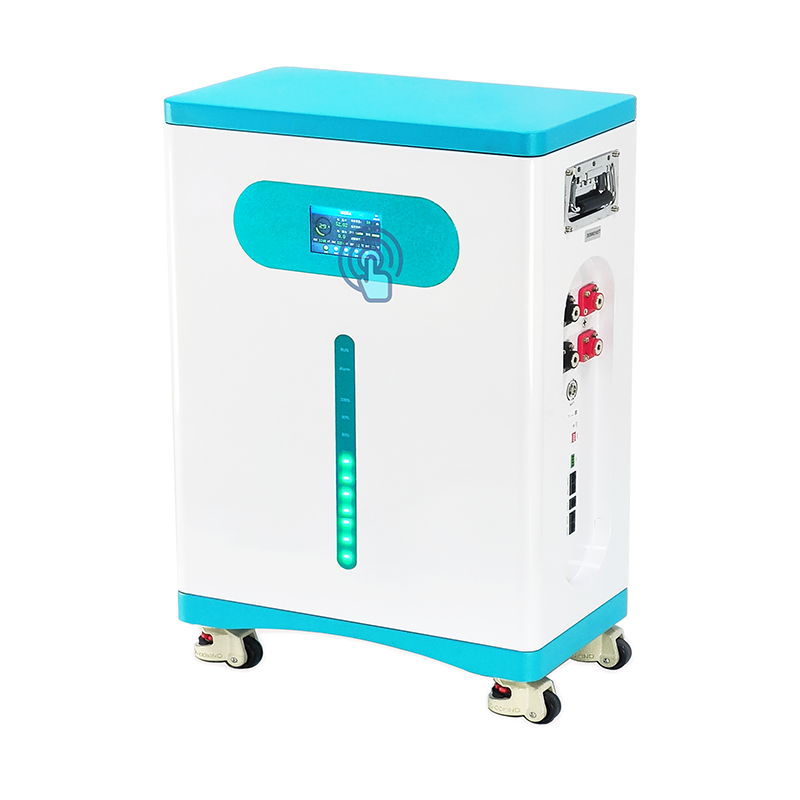

51.2V 400AH Mobile Battery Pack
High-Capacity Mobile Energy Storage System
20480WH Capacity
200A Discharge
Mobile Design
6000 Cycles
Product Introduction
Ultra-High Capacity
With 20.48kWh of energy storage and 400Ah capacity, this mobile battery pack delivers exceptional power for extended off-grid applications, commercial facilities, and high-demand residential systems.
Mobile Flexibility
Built-in heavy-duty wheels and ergonomic handles enable easy relocation between locations. Perfect for temporary installations, events, construction sites, and mobile power requirements.
High Power Output
200A continuous discharge current provides robust power delivery for demanding loads including air conditioning, power tools, medical equipment, and industrial machinery.
Technical Features
Smart Connectivity
Equipped with RS232, RS485, CAN, WiFi, and Bluetooth interfaces for comprehensive monitoring and control. Optional mobile APP enables remote system management and real-time diagnostics.
Advanced Protection
Multi-layer Battery Management System (BMS) provides protection against over-voltage, under-voltage, over-current, short circuit, and over-temperature conditions for maximum safety.
Long Lifespan
Premium LiFePO4 chemistry delivers 6000+ cycles at 80% depth of discharge, ensuring 10-15 years of reliable operation with minimal capacity degradation over time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 51.2V400AH-LS |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 400Ah |
| Rated Energy | 20480Wh (20.48kWh) |
| Continuous Charge Current | 0-150A |
| Continuous Discharge Current | 0-200A |
| Charge Termination Voltage | 58.4V |
| Discharge Termination Voltage | 44.8V - 46.5V |
| Communication Interface | RS232, RS485, CAN, WiFi, Bluetooth |
| Cycle Life | 6000 cycles (80% DOD) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | ≤95% (Non-condensing) |
| Altitude | ≤4000m above sea level |
| Protection Features | Over-voltage, Under-voltage, Over-current, Short-circuit, Over-temperature |
| Product Dimensions | 620mm × 325mm × 750mm |
| Product Weight | 138 kg |
| Package Dimensions | 690mm × 500mm × 885mm |
| Package Weight | 156 kg |
| Design Type | Mobile unit with heavy-duty wheels |
| Optional Features | APP control module |
| Recommended Solar Power | >4000W (for avg. 6hrs daily sunshine) |
Application Scenarios
Solar/Wind Energy Storage
Ideal for large-scale renewable energy systems requiring substantial storage capacity. Pairs perfectly with 4kW+ solar arrays for complete energy independence.
UPS Backup Power
Provides reliable emergency backup for commercial facilities, data centers, and critical infrastructure requiring extended runtime during power outages.
Communication Equipment
Ensures uninterrupted operation of telecommunication towers, broadcasting stations, and network infrastructure in remote or grid-unstable locations.
Medical Equipment
Critical power backup for hospitals, clinics, and medical facilities requiring absolute reliability for life-supporting equipment and sensitive instruments.
Emergency Power System
Mobile emergency power for disaster response, outdoor events, construction sites, and temporary installations requiring portable high-capacity energy storage.
Fire & Security System
Reliable backup power for fire alarms, security systems, surveillance equipment, and access control systems requiring continuous 24/7 operation.
Installation & Maintenance
Easy Installation
Pre-assembled and factory-tested unit requires minimal setup. Comprehensive installation manual included with step-by-step instructions for quick deployment.
Low Maintenance
Sealed LiFePO4 battery technology requires no regular maintenance. Self-monitoring BMS provides diagnostic alerts for optimal system health management.
Technical Support
Lifetime technical support from YueGu engineers. Remote diagnostics capability via communication interfaces enables fast troubleshooting and assistance.
Frequently Asked Questions
We recommend solar panels with total power exceeding 4000W for optimal daily charging. For example, with 6+ hours of average daily sunshine, a 4-5kW solar array will fully charge the 20kWh battery pack efficiently.
Runtime depends on connected loads. For example, the 20.48kWh capacity can power a 2kW load for approximately 10 hours, a 5kW load for 4 hours, or a 10kW load for 2 hours. Actual runtime may vary based on discharge rate and efficiency.
Yes, multiple units can be connected in parallel to increase total capacity. The system supports parallel configuration through standard communication protocols. Contact our engineers for proper parallel connection guidance.
The mobile APP control module is optional and can be added to your order. The APP provides remote monitoring, system diagnostics, and control features accessible from iOS and Android devices.
The battery pack includes a 10-year warranty with performance guarantee. The battery is warranted to retain at least 80% of its rated capacity after 6000 cycles or 10 years of normal use, whichever comes first.
