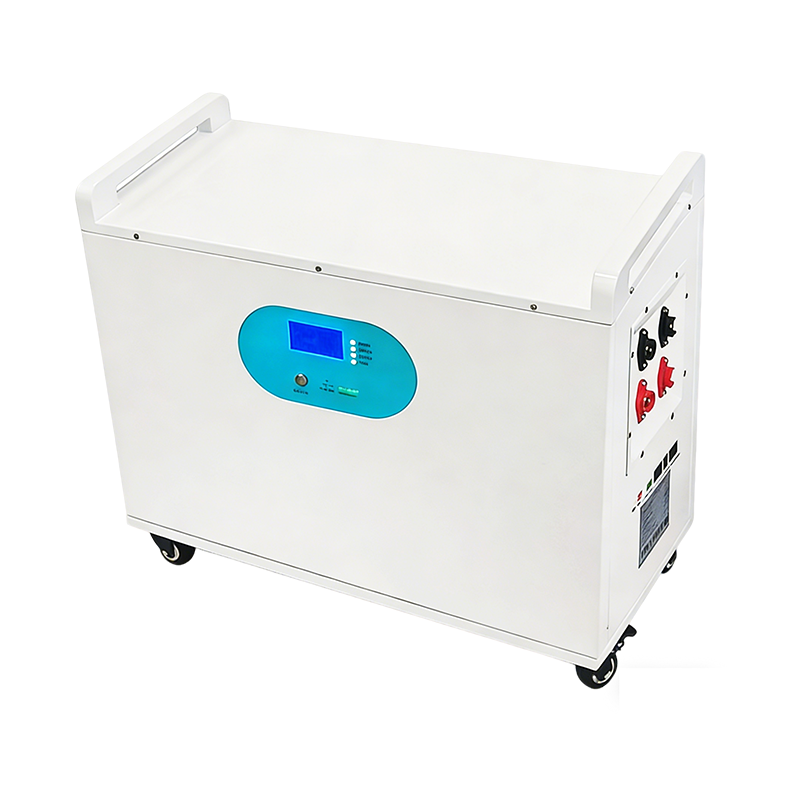

51.2V 300AH Mobile Battery Pack
Portable High-Capacity Energy Storage
15360WH Capacity
Mobile Design
200A Max Discharge
Wheeled System
Product Introduction
Mobile Flexibility
Integrated wheel system enables easy relocation and deployment. Perfect for temporary installations, emergency backup, and applications requiring portable power solutions.
High-Performance Power
15.36kWh capacity with 200A discharge capability provides substantial power for mobile applications, emergency response, and temporary power requirements.
Rugged Construction
Built for mobile applications with reinforced housing, shock-resistant design, and weatherproof protection suitable for various deployment scenarios.
Technical Features
Advanced Mobile Design
Specially engineered for mobile applications with vibration-resistant battery management, secure mounting systems, and optimized weight distribution.
Enhanced Protection
Comprehensive BMS with additional protection for mobile environments including impact resistance, tilt sensing, and enhanced thermal management.
All-Weather Performance
Designed for diverse environmental conditions with sealed construction, corrosion resistance, and reliable operation in challenging weather conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 51.2V300AH (Wheeled) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Rated Energy | 15360WH |
| Continuous Charge Current | 0-150A |
| Continuous Discharge Current | 0-200A |
| Charge Termination Voltage | 58.4V |
| Discharge Termination Voltage | 44.8V-46.5V |
| Communication Interface | RS232, RS485, CAN |
| Cycle Life | 6000 cycles (80% DOD) |
| Operating Temperature | -20°C to 60°C |
| Humidity | ≤95% |
| Altitude | ≤4000m |
| Product Dimensions | 680×320×500mm |
| Package Dimensions | 765×415×760mm |
| Product Weight | 116.2kg |
| Package Weight | 135kg |
Application Scenarios
Emergency Response
Mobile power solution for emergency services, disaster response, and first responders requiring reliable, portable energy storage for critical operations.
Event & Production
Perfect for outdoor events, film production, and temporary installations requiring high-capacity, portable power without fixed infrastructure.
Construction Sites
Reliable portable power for construction equipment, temporary offices, and job sites where grid power is unavailable or unreliable.
Installation & Integration
Easy Deployment
Self-contained mobile unit requires minimal setup. Integrated wheels and ergonomic handles enable easy positioning and relocation by personnel.
Flexible Connectivity
Multiple connection options for various applications. Compatible with portable inverters, mobile generators, and temporary electrical systems.
Modular Expansion
Multiple units can be connected for increased capacity. Parallel configuration enables scalable power solutions for larger mobile applications.
Frequently Asked Questions
Despite its high capacity, the integrated wheel system makes this battery portable. At 110kg, it requires careful handling but can be moved by two people and easily repositioned as needed.
For optimal charging, we recommend 3000W+ of portable or fixed solar panels. This configuration ensures efficient charging while maintaining the mobile flexibility of the system.
The system features sealed construction suitable for various weather conditions. However, for extended outdoor exposure, additional weather protection is recommended.
Yes, multiple units can be paralleled for increased capacity. This modular approach allows for scalable mobile power solutions tailored to specific application requirements.
