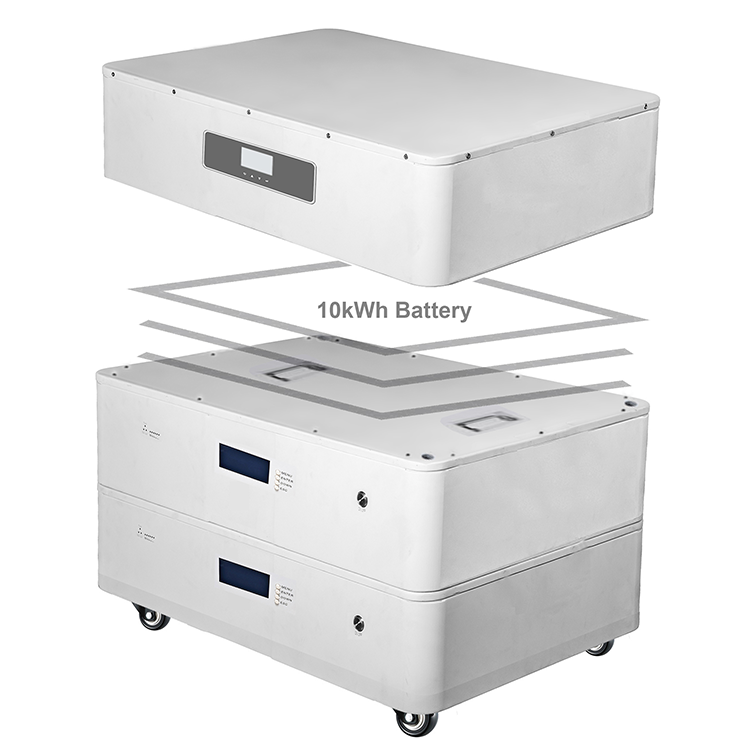

51.2V 200AH Mobile Stacking Battery Pack
Modular Stackable Energy Storage
10240WH Capacity
Stackable Design
15 Unit Parallel
Modular System
Product Introduction
Modular Stacking Design
Innovative stackable architecture allows up to 6 units in height with 15 units in parallel, providing ultimate flexibility for capacity expansion and system configuration.
Scalable Performance
10.24kWh base capacity per unit with 150A discharge capability, expandable to massive energy storage systems through modular stacking and parallel configuration.
Flexible Installation
Mobile stacking system enables easy reconfiguration, transportation, and deployment across multiple locations with standardized interconnect systems.
Technical Features
Modular Architecture
Advanced modular design with standardized electrical and mechanical interfaces enabling seamless stacking and parallel configurations.
Distributed BMS
Each unit features independent BMS with system-level coordination, ensuring optimal performance and safety across the entire stacked configuration.
Hot-Swappable Modules
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 51.2V200AH (Mobile Stacking) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Rated Energy | 10240WH |
| Continuous Charge Current | 0-150A |
| Continuous Discharge Current | 0-150A |
| Charge Termination Voltage | 58.4V |
| Discharge Termination Voltage | 44.8V-46.5V |
| Communication Interface | RS232, RS485, CAN |
| Cycle Life | 6000 cycles (80% DOD) |
| Maximum Parallel Units | 15 units |
| Maximum Stack Height | 6 units |
| Single Unit Dimensions | 630×403×200mm |
| Two-Unit Crate | 710×490×590mm |
| Single Unit Weight | 73kg |
| Two-Unit Crate Weight | 163kg |
Application Scenarios
Temporary Installations
Event Power Systems
Modular Industrial
Installation & Integration
Modular Setup
External Inverter Required
System Monitoring
Frequently Asked Questions
You can stack up to 6 units vertically and connect up to 15 units in parallel, providing enormous scalability for large energy storage requirements.
Yes, this system is designed to work with external inverters, providing flexibility in choosing the appropriate inverter for your specific application requirements.
Individual units feature hot-swap capability, allowing for maintenance or capacity adjustments without shutting down the entire system, though proper procedures must be followed.
Each unit weighs 73kg and is designed for mobile applications. Two-unit crates are available for efficient transportation and deployment.
