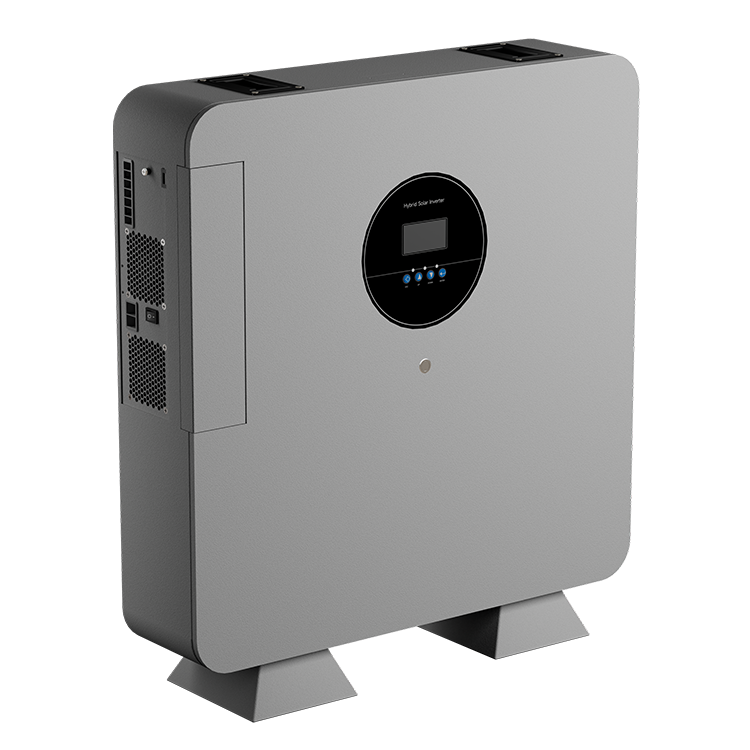

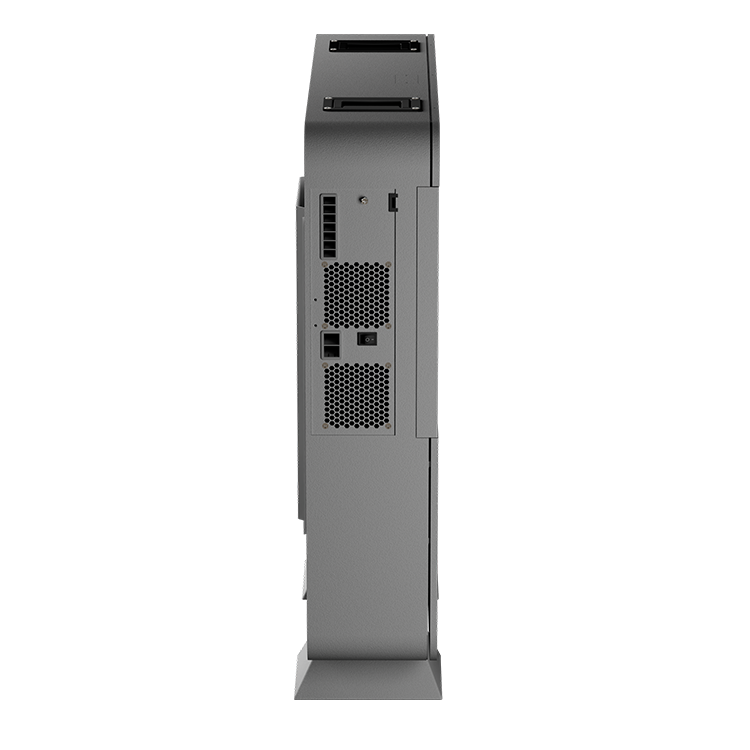

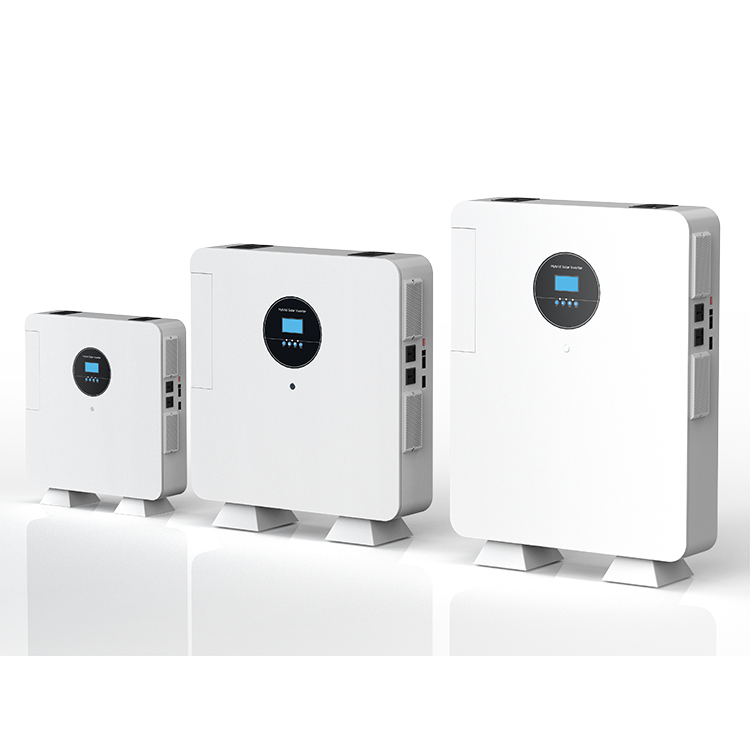

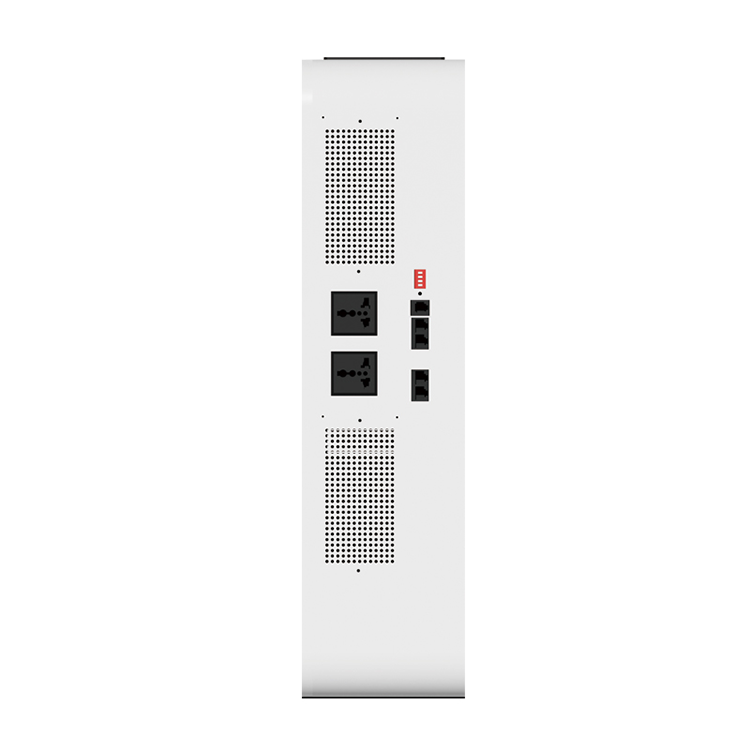

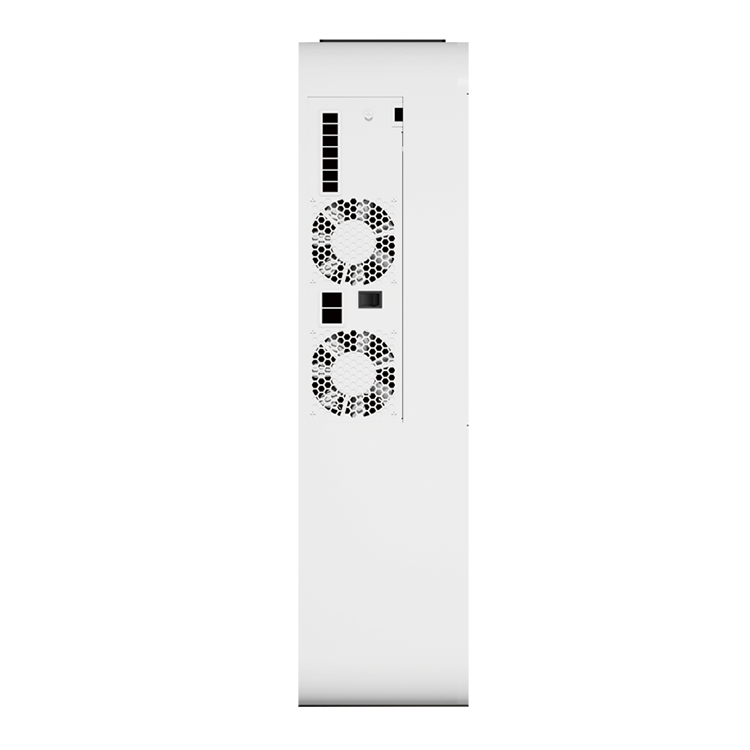

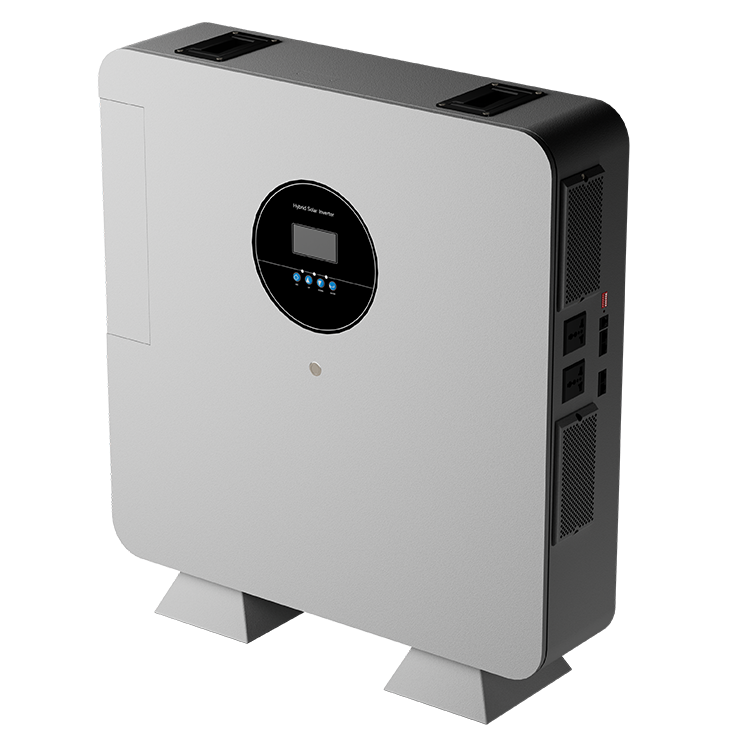

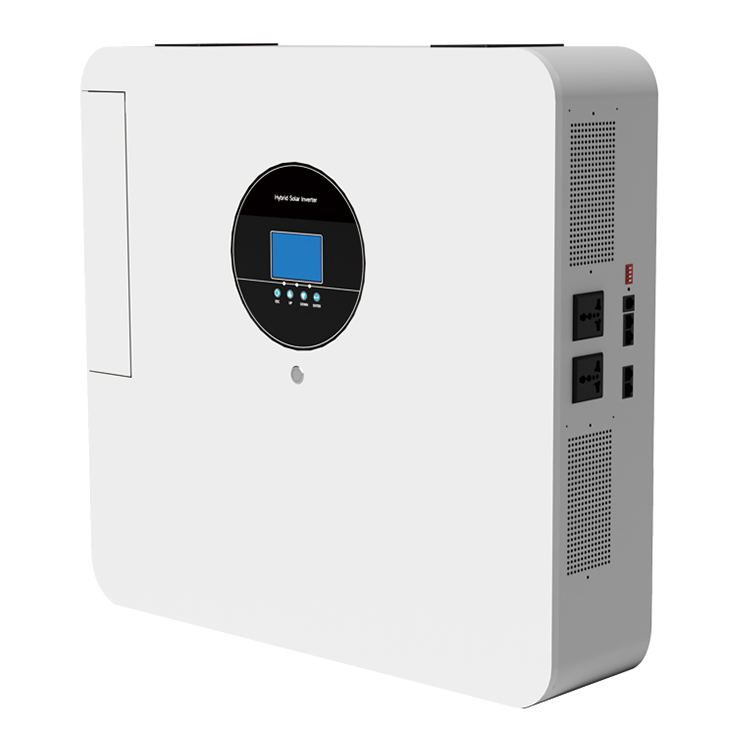

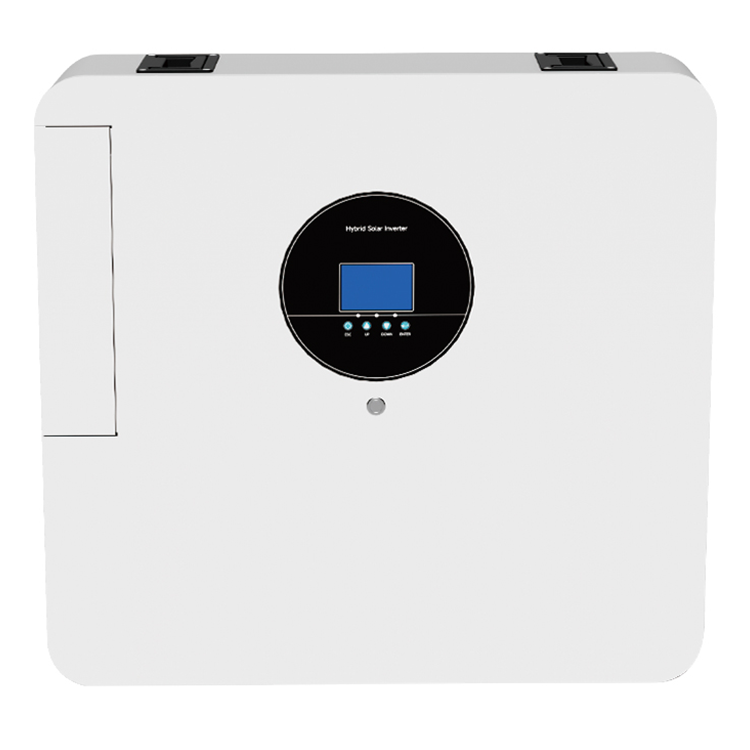

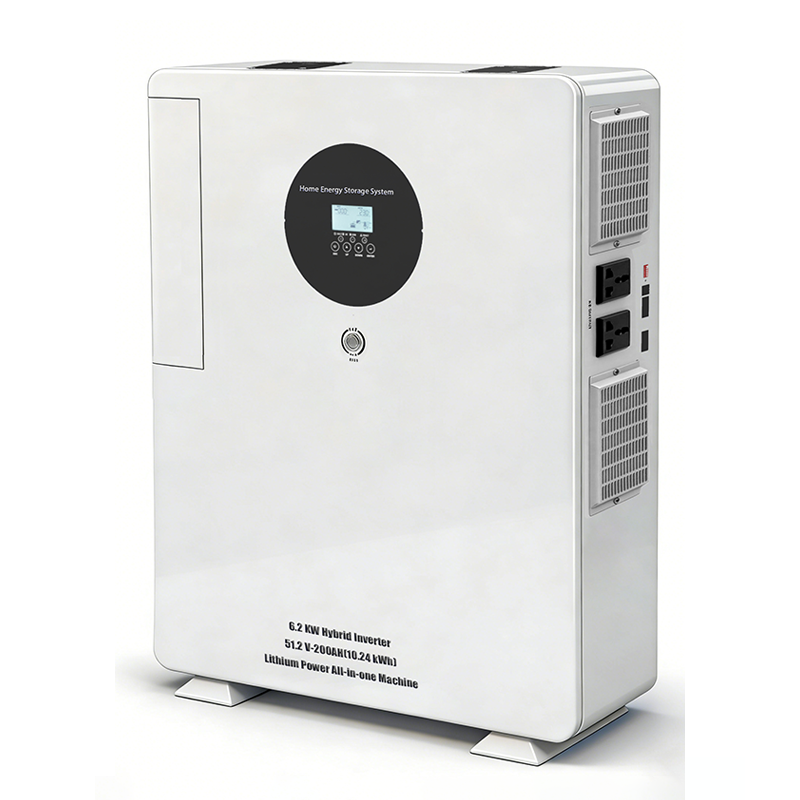

    10kWh Wall Mounted All-in-One System

    Complete Energy Storage & Power Solution

    10240WH Battery 6.2KW Inverter All-in-One 9 Unit Parallel

    Product Introduction

    🔋

    Complete Integration

    All-in-one design combines 10.24kWh battery storage with 6.2kW pure sine wave inverter, solar/AC charging controllers, and comprehensive monitoring in a single wall-mounted unit.

    ⚡

    High-Power Performance

    6.2kW inverter with 6500W solar/AC input capability provides substantial power for residential and small commercial applications with professional-grade performance.

    🏠

    Scalable System

    Supports parallel operation with up to 9 units for massive energy storage and power capacity, enabling growth from residential to commercial applications.

    Technical Features

    🔌

    Advanced Power Management

    Integrated MPPT solar controller (120A) with AC charging capability ensures optimal energy harvesting from multiple sources with intelligent load management.

    🛡️

    Comprehensive Protection

    Multi-layer protection system including overvoltage, undervoltage, overload, short circuit, and thermal protection with professional-grade safety certifications.

    📱

    Smart Monitoring

    Optional APP module provides complete system monitoring, remote control, and performance optimization with real-time data and alert notifications.

    Technical Specifications

    Parameter Specification
    ModelYG10-6.2KW
    Battery Voltage51.2V
    Battery Capacity200Ah
    Battery Energy10240WH
    Battery Cycle Life6000 cycles (80% DOD)
    Inverter Rated Power6.2KW
    Input Frequency50Hz/60Hz
    Solar/AC Input6500W (120-450V)
    MPPT Controller120A
    Output Voltage220V/230VAC±5% (110V customizable)
    Output WaveformPure Sine Wave
    CommunicationRS232, RS485, CAN
    Parallel SupportUp to 9 units
    Dimensions750×635×150mm
    Package Dimensions865×725×250mm
    Weight89.1kg
    Package Weight108kg

    Application Scenarios

    🏠

    Residential Energy Storage

    Complete home energy solution providing backup power, solar energy storage, and grid independence for modern households with high power demands.

    🏢

    Small Commercial

    Perfect for small businesses, offices, and retail locations requiring reliable backup power and energy cost reduction through solar integration.

    🌊

    Off-Grid Living

    Complete power solution for off-grid homes, cabins, and remote locations requiring reliable, high-capacity energy storage and conversion.

    Installation & Integration

    🔧

    Professional Installation

    Wall-mounted all-in-one design simplifies installation with integrated components reducing wiring complexity and installation time.

    ☀️

    Solar Integration

    Built-in MPPT controller optimizes solar panel performance with support for 2000W+ solar arrays for maximum energy harvesting.

    🔗

    System Expansion

    Up to 9 units can be paralleled for increased capacity and power, enabling growth from 10kWh to 92kWh and 55.8kW of power.

    Frequently Asked Questions

    We recommend 2000W or more of solar panel capacity to fully utilize the integrated MPPT controller and maximize energy independence with optimal charging efficiency.
    Yes, up to 9 units can be connected in parallel, providing up to 92kWh of energy storage and 55.8kW of inverter power for large residential or commercial applications.
    With 10.24kWh capacity and 6.2kW power output, the system can power an average home for 8-16 hours or essential loads for 1-3 days, depending on usage patterns.
    Minimal maintenance is required due to the integrated design. Regular system checks, firmware updates, and connection inspections ensure optimal long-term performance.
